HSS Drill Speeds and Feeds Chart: An Overview
HSS drill speeds and feeds are crucial for efficient machining‚ with grades like HSS M4‚ Super HSS T15‚ and Premium HSS M48 impacting performance․
These charts offer nominal starting points; a 20% speed and 10% feed reduction are generally recommended for optimal results and extended tool life․
Calculators determine optimal RPM and IPM‚ while considering material‚ drill diameter‚ and grade for precise parameter selection in various applications․
Understanding HSS Drill Grades
High-Speed Steel (HSS) drill grades represent a significant advancement in cutting tool technology‚ offering varying levels of performance based on their composition․ Understanding these differences is paramount for selecting the appropriate drill bit for a given application and material․
HSS itself provides a good balance of toughness and wear resistance‚ suitable for general-purpose drilling․ However‚ advancements have led to specialized grades like HSS M4‚ known for its increased hardness and ability to maintain cutting edges at higher temperatures․ This makes it ideal for more demanding tasks․
Super HSS T15 further enhances these properties‚ incorporating additional alloying elements for superior heat resistance and wear resistance‚ particularly beneficial when working with harder materials․ Finally‚ Premium HSS M48‚ often containing cobalt‚ delivers the highest levels of performance‚ excelling in machining tough alloys and stainless steels․
Choosing the correct grade directly impacts drilling speed‚ feed rates‚ and overall tool longevity‚ ultimately influencing the quality and efficiency of the machining process․
HSS M4 Grade Characteristics
HSS M4 is a widely utilized high-speed steel grade‚ celebrated for its robust combination of toughness‚ wear resistance‚ and relatively high red hardness․ This composition allows it to retain its cutting ability even at elevated temperatures generated during drilling operations․
Compared to standard HSS‚ M4 exhibits improved performance in machining harder materials‚ including alloy steels and some stainless steel grades․ It’s a versatile choice for general engineering applications‚ offering a good balance between cost and performance․
When utilizing HSS M4 drills‚ recommended Surface Machining Feet (SFM) values typically range from 80-110 for steels with a Brinell Hardness below 180 HB․ Adjustments are crucial; a 50% SFM reduction is advised when drilling with coatings‚ with a subsequent 10 SFPM addition․
Proper speed and feed selection‚ guided by charts‚ maximizes tool life and ensures efficient material removal with HSS M4 drill bits․
Super HSS T15 Grade Properties
Super HSS T15 represents an advancement over standard HSS‚ boasting enhanced heat resistance and cutting performance․ This grade incorporates a higher molybdenum content‚ contributing to its superior hot hardness and ability to maintain a sharp cutting edge at increased temperatures․
T15 excels in machining tougher materials‚ including high-strength steels and certain stainless steel alloys‚ where conventional HSS might struggle․ It offers improved tool life and allows for higher cutting speeds‚ boosting productivity․
While specific SFM values depend on the material‚ Super HSS T15 generally supports slightly higher speeds than HSS M4․ Remember to adjust based on Brinell Hardness; coatings can also influence optimal parameters․
Utilizing appropriate speeds and feeds‚ as indicated in relevant charts‚ is vital to unlock the full potential of Super HSS T15 drill bits and achieve efficient‚ high-quality drilling results․
Premium HSS M48 Grade Details
Premium HSS M48 represents a top-tier choice within the High-Speed Steel family‚ engineered for demanding applications and superior performance․ This grade features a refined composition‚ including additions of cobalt and tungsten‚ resulting in exceptional hardness‚ wear resistance‚ and red hardness․
M48 excels in machining abrasive materials like stainless steel‚ cast iron‚ and high-temperature alloys‚ offering extended tool life and consistent cutting performance․ It allows for significantly higher cutting speeds and feeds compared to standard HSS grades․
When utilizing M48‚ consult detailed charts for recommended SFM values‚ adjusting based on material hardness and employing appropriate coatings for further enhancement․ Remember reductions in speed and feed are recommended․
Investing in Premium HSS M48 drill bits translates to increased productivity‚ reduced downtime‚ and superior hole quality in challenging machining operations․
Calculating Optimal Drilling Parameters
Determining ideal RPM and IPM is vital for efficient HSS drilling‚ utilizing calculators and charts based on material‚ drill size‚ and grade․
What is a HSS Drill Speed and Feed Calculator?
A HSS Drill Speed and Feed Calculator is a valuable tool designed to determine the most efficient drilling parameters for High-Speed Steel (HSS) drill bits․ Essentially‚ it’s a resource that helps machinists and metalworkers pinpoint the optimal balance between drilling speed‚ measured in Revolutions Per Minute (RPM)‚ and feed rate‚ expressed as Inches Per Minute (IPM) or Inches Per Revolution (IPR)․
The primary purpose of this calculator is to maximize material removal rates while simultaneously extending the lifespan of the HSS drill bit․ By inputting specific details – such as the material being drilled‚ the drill bit diameter‚ and the HSS grade (like M4‚ T15‚ or M48) – the calculator provides tailored recommendations․
Using a calculator ensures that the drilling process isn’t too aggressive‚ which can lead to premature tool wear or breakage‚ nor is it too conservative‚ which results in inefficient machining and increased cycle times․ It’s a cornerstone of optimizing drilling operations․
How Does the Calculator Work?
The HSS Drill Speed and Feed Calculator functions by utilizing established formulas and material properties to derive optimal drilling parameters․ At its core‚ the calculator leverages the relationship between Surface Speed (SFM) – the cutting speed at the drill’s periphery – and the desired RPM․ The SFM is material-dependent; harder materials require lower SFM values․
The calculator then translates the SFM into RPM based on the drill bit’s diameter․ Subsequently‚ the feed rate (IPM or IPR) is calculated‚ considering both the RPM and the number of flutes on the drill bit․ Different materials also dictate appropriate feed rates; stainless steel‚ for example‚ typically requires a slower feed than aluminum․
Inputting the HSS grade is also crucial‚ as different grades have varying heat resistance and hardness‚ influencing optimal speeds and feeds․ The calculator essentially automates these calculations‚ providing a convenient and accurate starting point for drilling operations․
Factors Influencing Speed and Feed Selection
Several critical factors beyond material hardness dictate optimal HSS drill speeds and feeds․ Hole depth significantly impacts selection; deeper holes necessitate reduced RPM and feed rates to prevent tool overload and breakage‚ particularly beyond three times the hole diameter․
Brinell Hardness (BHN) is a key indicator‚ directly correlating to required SFM – harder materials demand lower speeds․ Drill bit diameter also plays a role; larger diameters generally require slower speeds and higher feed rates․ The presence of coatings‚ like titanium nitride‚ can increase SFPM by approximately 10%․
Furthermore‚ the specific HSS grade (M4‚ T15‚ M48) influences the optimal range․ Rigidity of the machine‚ workpiece clamping‚ and coolant usage all contribute to successful drilling‚ requiring adjustments to the initial calculated parameters․
HSS Drill Speeds and Feeds Charts
Twist drill charts provide recommended feed rates by diameter for nonferrous materials‚ stainless steel‚ and high-temp alloys‚ aiding precision machining․
Recommended Feed Rates by Drill Diameter (Nonferrous Materials)
HSS drill feed rates for nonferrous materials vary significantly with drill diameter‚ influencing material removal and surface finish․ For drill sizes less than 1/8 inch (0․1250 inches)‚ a recommended feed rate is approximately 0․008 to 0․012 inches per revolution (IPR)․ As the diameter increases to 1/4 inch (0․2500 inches)‚ the IPR typically ranges from 0․010 to 0․016 inches․
Further increasing the diameter to 3/8 inch (0․3750 inches)‚ the recommended feed rate expands to 0․012 to 0․020 IPR․ For 1/2 inch (0․5000 inches) drills‚ operators should aim for 0․016 to 0․025 IPR․ When utilizing larger 3/4 inch (0․7500 inches) diameter drills‚ the IPR should be between 0․020 and 0․030 inches․
These values serve as guidelines‚ and adjustments are often necessary based on the specific alloy‚ machine rigidity‚ and desired chip load․ Always prioritize a smooth‚ consistent feed for optimal results․
Recommended Feed Rates by Drill Diameter (Stainless Steel)
HSS drill feed rates for stainless steel demand careful consideration due to the material’s work-hardening properties․ For drills smaller than 1/8 inch (0․1250 inches) in diameter‚ a recommended feed rate falls within 0․006 to 0․010 inches per revolution (IPR)․ Increasing to a 1/4 inch (0․2500 inches) drill‚ the IPR should be between 0․008 and 0․014 inches․
With a 3/8 inch (0․3750 inches) drill‚ operators should target 0․010 to 0․018 IPR․ For 1/2 inch (0․5000 inches) diameters‚ a range of 0․014 to 0․022 IPR is generally appropriate․ Larger 3/4 inch (0․7500 inches) drills benefit from a feed rate of 0․018 to 0․028 inches․
Lower speeds and feeds are crucial to prevent work hardening and tool breakage․ Consistent chip evacuation is also vital when machining stainless steel with HSS drills․
Recommended Feed Rates by Drill Diameter (High Temp Alloys)
HSS drilling of high-temperature alloys requires significantly reduced feed rates compared to softer materials‚ due to their inherent hardness and abrasive nature․ For drill diameters under 1/8 inch (0․1250 inches)‚ a feed rate of 0․004 to 0․008 IPR is recommended․ Increasing to a 1/4 inch (0․2500 inches) drill‚ the IPR should be between 0․006 and 0․012 inches․
When utilizing a 3/8 inch (0․3750 inches) drill‚ aim for 0․008 to 0․014 IPR․ For 1/2 inch (0․5000 inches) diameters‚ a range of 0․010 to 0․016 IPR is generally suitable․ Larger 3/4 inch (0․7500 inches) drills benefit from a feed rate of 0․012 to 0․020 inches․

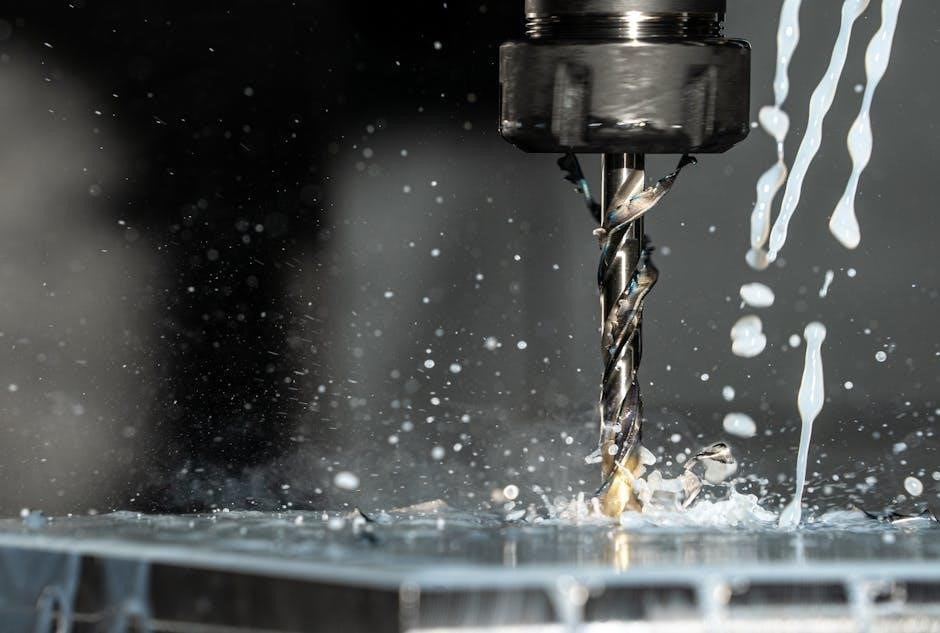

Employing ample coolant and reducing cutting speeds are essential to mitigate heat buildup and extend tool life when working with these challenging alloys using HSS drills․
Material-Specific Considerations
HSS drill performance varies greatly by material; steels below 180 HB utilize 80-110 SFM‚ while hardwoods‚ like 5/16” in 1-3/8” boards‚ benefit from 1‚500 RPM․
Drilling Steels (Hardness Below 180 HB)
When machining steels with a Brinell hardness below 180 HB using HSS drill bits‚ specific parameters are recommended to achieve efficient cutting and maximize tool longevity․ Generally‚ a point angle of 118 degrees is suitable for these softer steel grades․ The Surface Feet per Minute (SFM) should fall within the range of 80 to 110 feet per minute‚ providing a balance between material removal rate and minimizing tool wear․
It’s crucial to remember that these values are starting points‚ and adjustments may be necessary based on specific steel composition‚ drill bit condition‚ and the desired finish․ Utilizing appropriate cutting fluids is also highly recommended to dissipate heat and lubricate the cutting interface‚ further extending drill life and improving hole quality․ Always prioritize safety and adhere to proper machining practices when working with steel materials․
Consider reducing SFM by 50% when using coated drill bits‚ and adding 10 to the SFPM with coatings for enhanced performance․
Drilling Hardwood (Example: 5/16 Drill Bit in 1-3/8 Board)
For drilling hardwood‚ such as a 1-3/8 inch thick board using a 5/16 inch HSS drill bit‚ a recommended speed of 1‚500 RPM serves as a solid starting point․ However‚ maintaining consistent and controlled feed pressure is paramount to prevent splintering and achieve clean‚ accurate holes․ When dealing with deeper holes – those exceeding three times the drill bit diameter – it’s advisable to reduce both the RPM and the feed rate to manage heat buildup and maintain drilling precision․
Employing a backer board can significantly minimize tear-out on the exit side of the hole‚ resulting in a cleaner finish․ Sharp drill bits are essential for efficient hardwood drilling; dull bits will cause excessive heat and potentially damage the wood․ Remember to clear chips frequently to prevent clogging and maintain optimal cutting performance․
Impact of Coatings on SFM
HSS drill bit coatings significantly influence Surface Feet per Minute (SFM) recommendations‚ enhancing performance and tool life․ Generally‚ uncoated HSS drills operate at lower SFM values compared to coated counterparts․ Applying a coating‚ such as titanium nitride (TiN) or titanium carbonitride (TiCN)‚ allows for an increase of approximately 10% to the standard SFM․
This increase is due to the coating’s reduced friction and improved wear resistance‚ enabling higher cutting speeds without compromising tool integrity․ However‚ it’s crucial to consider the specific coating material and the workpiece material when adjusting SFM․ Always consult the drill bit manufacturer’s guidelines for optimal coating-specific SFM values․ Proper cooling and lubrication remain essential‚ even with coated drills‚ to maximize performance and prevent premature wear․
Advanced Drilling Techniques
Deeper holes necessitate reduced RPM and feed rates beyond three times the hole diameter‚ while Brinell Hardness directly correlates to optimal SFM values․
IPR is determined by drill diameter for precise control․
Adjusting for Hole Depth (Deeper Holes)
When drilling deeper holes – specifically those exceeding three times the drill diameter in depth – adjustments to drilling parameters become essential for maintaining accuracy‚ extending tool life‚ and preventing premature wear on the HSS drill bit․
The primary adjustment involves a reduction in both rotational speed (RPM) and the feed rate․ This is because deeper holes generate increased frictional heat and require more energy to remove material effectively․
Reducing the RPM helps to minimize heat buildup‚ while a slower feed rate allows the drill bit to clear chips more efficiently‚ preventing clogging and reducing stress on the cutting edges․
A general guideline suggests a moderate reduction in both speed and feed; however‚ the precise amount of adjustment will depend on the specific material being drilled‚ the drill bit grade‚ and the overall drilling setup․ Careful monitoring of chip formation and drill bit temperature is crucial during deeper hole drilling operations․
Brinell Hardness and Surface Speed (SFM) Relationship
The Brinell Hardness (BHN) of a material is directly correlated to the appropriate Surface Speed (SFM) used when drilling with HSS drill bits․ Harder materials necessitate lower SFM values‚ while softer materials can tolerate higher SFM․
This relationship stems from the increased resistance encountered when cutting harder materials; attempting to maintain a high SFM on a hard material will lead to excessive heat buildup‚ rapid tool wear‚ and potentially drill bit failure․
Charts typically provide SFM recommendations based on BHN ranges․ For instance‚ steels with a BHN below 180 require an SFM of 80-110‚ while harder alloys demand significantly lower values․
Understanding this connection is vital for selecting the correct SFM‚ optimizing cutting performance‚ and maximizing the lifespan of your HSS drill bits․ Coatings can also influence SFM‚ often allowing for a 10% increase․
Feed Per Revolution (IPR) Based on Drill Diameter
Feed Per Revolution (IPR) – the distance the drill advances with each rotation – is critically linked to drill diameter and material being cut․ Charts detail recommended IPR values for various drill sizes‚ typically ranging from 1/16” to 1 ½” and beyond․
Smaller diameter drills generally require lower IPR values to prevent breakage and ensure accurate hole creation․ Conversely‚ larger diameter drills benefit from higher IPR to efficiently remove material․
The provided charts categorize IPR recommendations based on drill diameter (e․g․‚ <1/8”‚ 1/4”‚ 3/8”‚ etc․) and material type (aluminum‚ steel‚ high-temp alloys)․ These values serve as starting points‚ requiring adjustments based on specific conditions․
Proper IPR selection balances material removal rate with tool life and surface finish․ Insufficient IPR can cause rubbing and work hardening‚ while excessive IPR can lead to chatter and premature wear․
